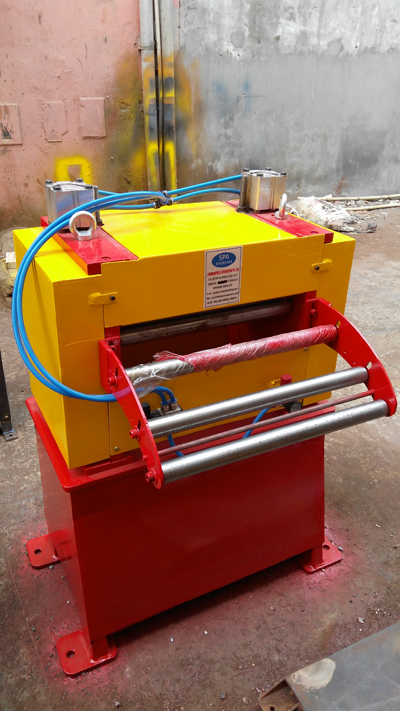

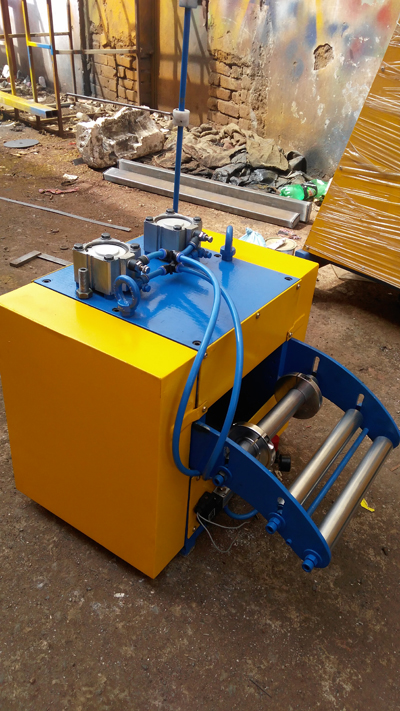

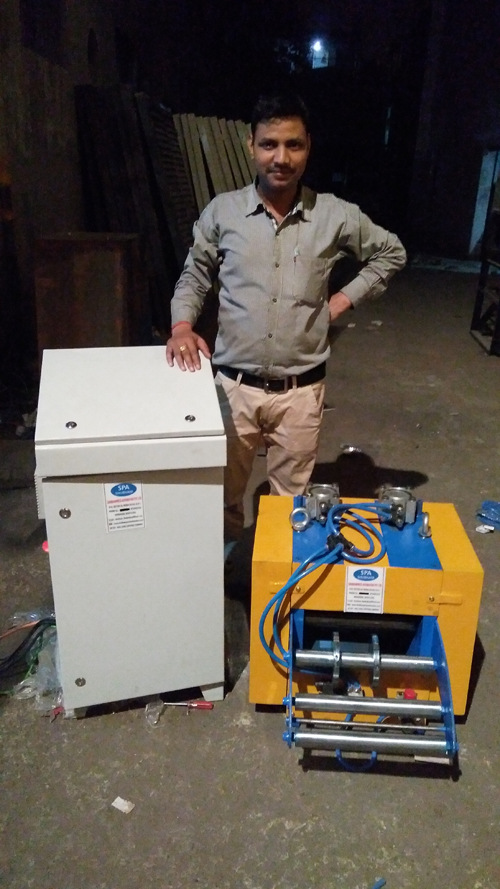

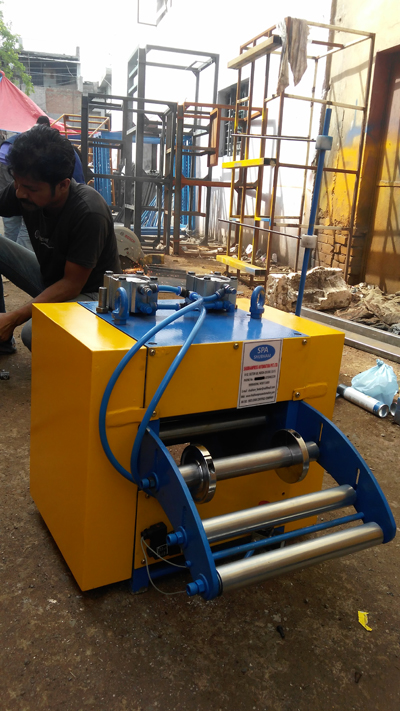

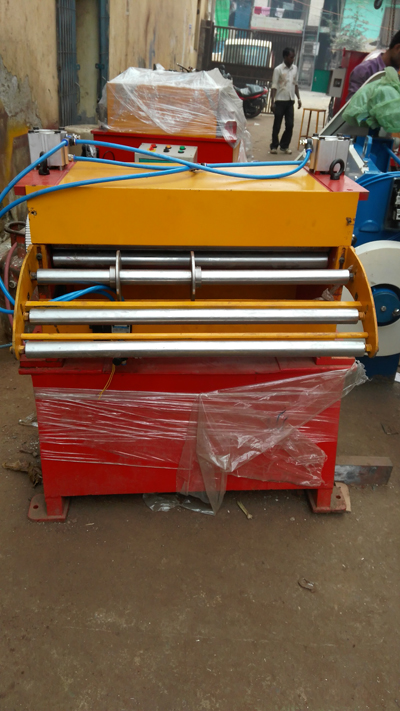

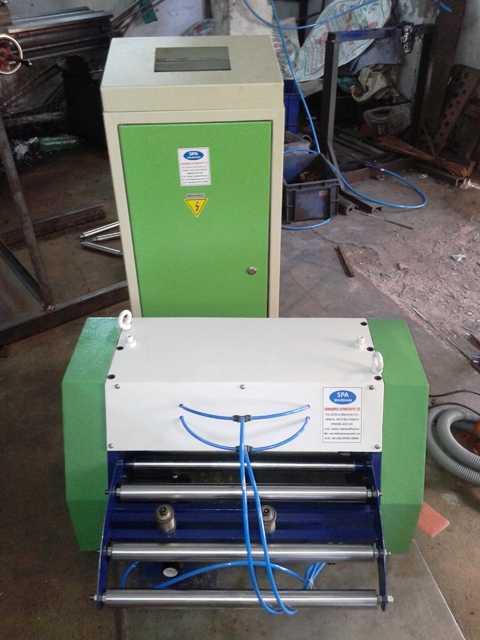

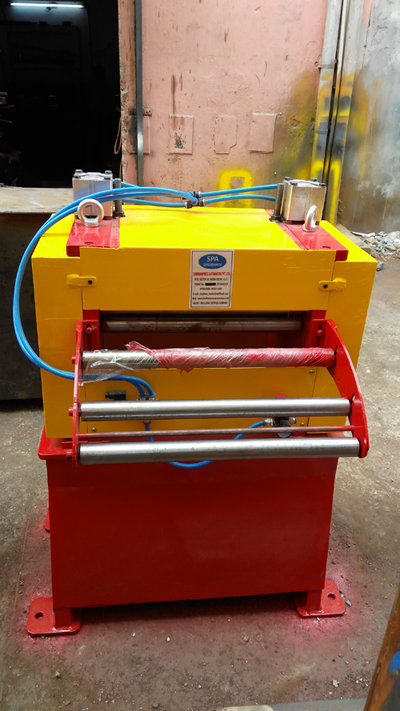

NC Servo Roll Feeder
Our organization is a renowned manufacturer, supplier and exporter of NC Servo Roll Feeder which is manufactured using high grade raw material that is procured from our trusted vendors. This feeder has sturdy construction, high rigid mechanical design and high power power output to secure proper feeding and straightening during the speed increasing efficiency. It is used in various industries such as electrical, electronics, automobile and chemical. This product can be availed by customer at an inexpensive price and can be customized as per the requirement of the client.
   |
NC Servo Roll Feeder : Features
- High Performance brushless Servo Drive (From International Source)
- Low inertia, brush less AC Servo motor with high energy;
- Precision incremental Optical Encoder (In built) to provide velocity & position loop feedback.
- Hardened Terminal : Easy-to-read solid state Interface Terminal display area with a backlit 4 line display, sealed membrane keypad with tactile feedback.
- User Friendly Interface : The Interface Terminal directs the operator with clear, descriptive message in plain English. Pressing the Help Key While in different screens directs the operator with instructions on how to change parameters or look at information. Different modes off operation cab be selected as well as jogging forward or reverse in manual mode.
- Batch counting : The operator chooses the number of parts to make and the Interface Terminal will display a message when the count is reached. Up to 999,999.
|
SERIES |
MODELS |
WIDTH |
THICKNESS |
VELOCITY |
|
|
SPA-CH-200-HS |
200 |
0.5-6.0 |
90 |
|
|
SPA-CH-300-HS |
300 |
0.5-6.0 |
90 |
|
HEAVY SERIES |
SPA-CH-400-HS |
400 |
0.5-5.0 |
90 |
|
SERVO FEEDER |
SPA-CH-500-HS |
500 |
0.5-5.0 |
90 |
|
|
SPA-CH-600-HS |
600 |
0.5-4.0 |
90 |
|
|
SPA-CH-800-HS |
800 |
0.5-3.0 |
90 |
|
|
SPA-CH-1000-HS |
1000 |
0.5-2.0 |
90 |
