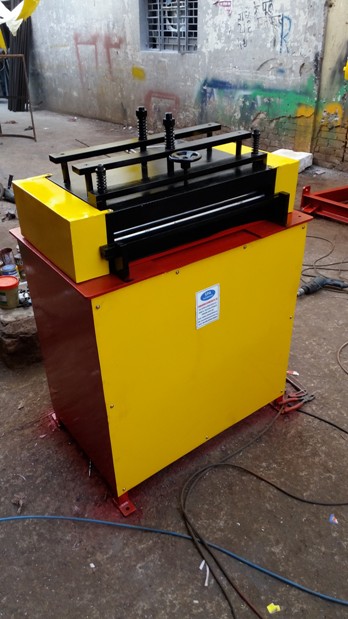

Motorised Straightener
SPA-BCL TYPE (roller diameter 32mm)
For thickness upto 1.6mm, roller dia 32mm, single point adjustment, with or without VFD panels. All rolls are hardened, ground and chrome plated and all standard gear box and electrical motors used.
SPA-CLS TYPE (Roller Diameter 60mm)
For thickness upto 3.0mm, roller dia 60mm, single point adjustment, with or without VFD panels. All are hardened, ground and chrome plated and all standard gear box and electrical motors used.
SPA-BCL TYPE (roller diameter 32mm)
|
MODEL |
SPA-BCL-200 |
SPA-BCL-300 |
SPA-BCL-400 |
SPA-BCL-500 |
|
MATERIAL WIDTH (mm) |
200 |
300 |
400 |
500 |
|
MATERIAL THICKNESS (mm) |
0.2-1.5 |
0.2-1.5 |
0.2-1.5 |
0.2-1.5 |
|
SPEED(M/MIN) |
15 |
15 |
15 |
15 |
|
STRAIGHTENER DIAMETER X QUANTITY |
|
32 X ALL DRIVEN 32 X UP 7 / DOWN 8 |
|
|
|
PITCH ROLLER DIAMETER X QUANTITY |
|
32 X 2 / 32 X 2 32 X 2 UP / 32 X 2 DOWN |
|
|

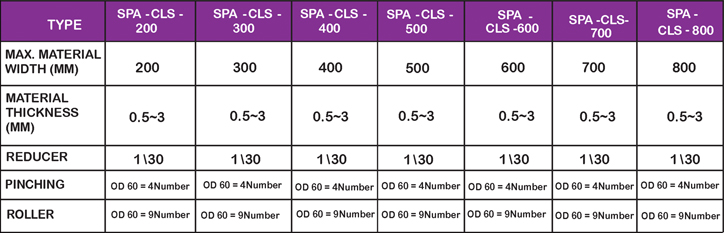

SPA-CLS TYPE (Roller Diameter 60mm)
